Persistent Volumes: The Orchestration of Data Gravity

In Kubernetes, storage is a first-class resource. The system decouples the provisioning of storage (managed by an Admin/CSI) from the consumption of storage (managed by a Developer).

1. THE ARCHITECTURAL ABSTRACTION​

The storage stack is divided into three layers to ensure portability across different cloud and on-prem environments.

  1. StorageClass (The Policy): Defines "How" storage is created (e.g., "Fast SSD," "Encrypted," "Retain on Delete").
  2. PersistentVolume (The Asset): A cluster-scoped object representing a physical disk.
  3. PersistentVolumeClaim (The Request): A namespace-scoped ticket used by developers to "buy" a PV.

1.1 The Control Loop (Reconciliation)​

The PV Controller in the kube-controller-manager runs a continuous loop. It watches for new PVCs and tries to find a matching PV. If found, it "binds" them by setting the spec.claimRef on the PV and status.phase: Bound on the PVC.

2. PERSISTENT VOLUMES (PV)​

A PV is Cluster-Scoped. It exists outside of any namespace, much like a Node.

2.1 Access Modes Internals​

  • ReadWriteOnce (RWO): Mounted by a single node. This is enforced by the block layer (e.g., AWS EBS cannot be attached to two VMs simultaneously).
  • ReadWriteMany (RWX): Mounted by many nodes. Requires a network filesystem (NFS, CephFS, EFS) that handles file-level locking.
  • ReadWriteOncePod (RWOP): (v1.27+) Ensures that only one Pod in the entire cluster can write to the volume. This is the strictest lock available.

2.2 Reclaim Policies​

What happens to the physical disk when the PVC is deleted?

  • Delete (Default): The PV and the actual physical asset (EBS/GCE Disk) are deleted.
  • Retain: The PV status becomes Released. The physical data is preserved. An admin must manually delete the PV and the cloud disk.

3. PERSISTENT VOLUME CLAIMS (PVC)​

A PVC is Namespace-Scoped. Pods can only use PVCs within their own namespace.

3.1 The Binding Logic​

The PV Controller matches PVCs to PVs based on:

  1. StorageClassName: Must be identical.
  2. AccessModes: PV must support at least what the PVC requests.
  3. Size: PV must be $\ge$ PVC request. (If you request 5Gi and only a 100Gi PV is available, Kubernetes will bind it, effectively "wasting" 95Gi).

4. STORAGE CLASSES & DYNAMIC PROVISIONING​

Dynamic provisioning allows storage to be created "on-demand," eliminating the need for admins to manually pre-create hundreds of PVs.

4.1 Volume Binding Mode: The Zonal Trap​

This is the most critical setting for Multi-AZ clusters (AWS/GCP/Azure).

  • Immediate (Default): As soon as a PVC is created, the PV is provisioned.
    • Problem: The disk is created in AZ-1, but the Pod's CPU/Mem requirements might force it to schedule in AZ-2. The Pod will stay Pending with a Volume Node Affinity error.
  • WaitForFirstConsumer: The PVC stays Pending until a Pod is created. The Scheduler then looks at the Pod's requirements and the available Node zones, then tells the CSI driver: "Create the disk in AZ-2."

4.2 Production StorageClass Manifest​

apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: production-ssd-waited
provisioner: ebs.csi.aws.com
reclaimPolicy: Retain                # Safety first in production
volumeBindingMode: WaitForFirstConsumer # Essential for Multi-AZ
allowVolumeExpansion: true           # Enable online resizing
parameters:
  type: gp3
  encrypted: "true"

5. VOLUME EXPANSION (RESIZING)​

Kubernetes supports increasing the size of a volume without recreating the PVC.

5.1 The Two-Step Expansion​

  1. Cloud Expansion: The CSI driver calls the Cloud API to expand the block device.
  2. File System Expansion: The Kubelet on the node detects the new size and runs resize2fs or xfs_growfs to expand the partition.
    • Note: Most modern drivers support Online Expansion (the Pod stays running).

6. BIBLE-GRADE YAML: THE FULL STACK​

6.1 The Request (PVC)​

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: data-pvc
  namespace: prod-apps
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 50Gi
  storageClassName: production-ssd-waited

6.2 The Workload (Pod)​

apiVersion: v1
kind: Pod
metadata:
  name: database-pod
spec:
  containers:
  - name: db
    image: postgres:15
    volumeMounts:
    - name: pg-data
      mountPath: /var/lib/postgresql/data
  volumes:
  - name: pg-data
    persistentVolumeClaim:
      claimName: data-pvc # Maps the Pod to the Claim

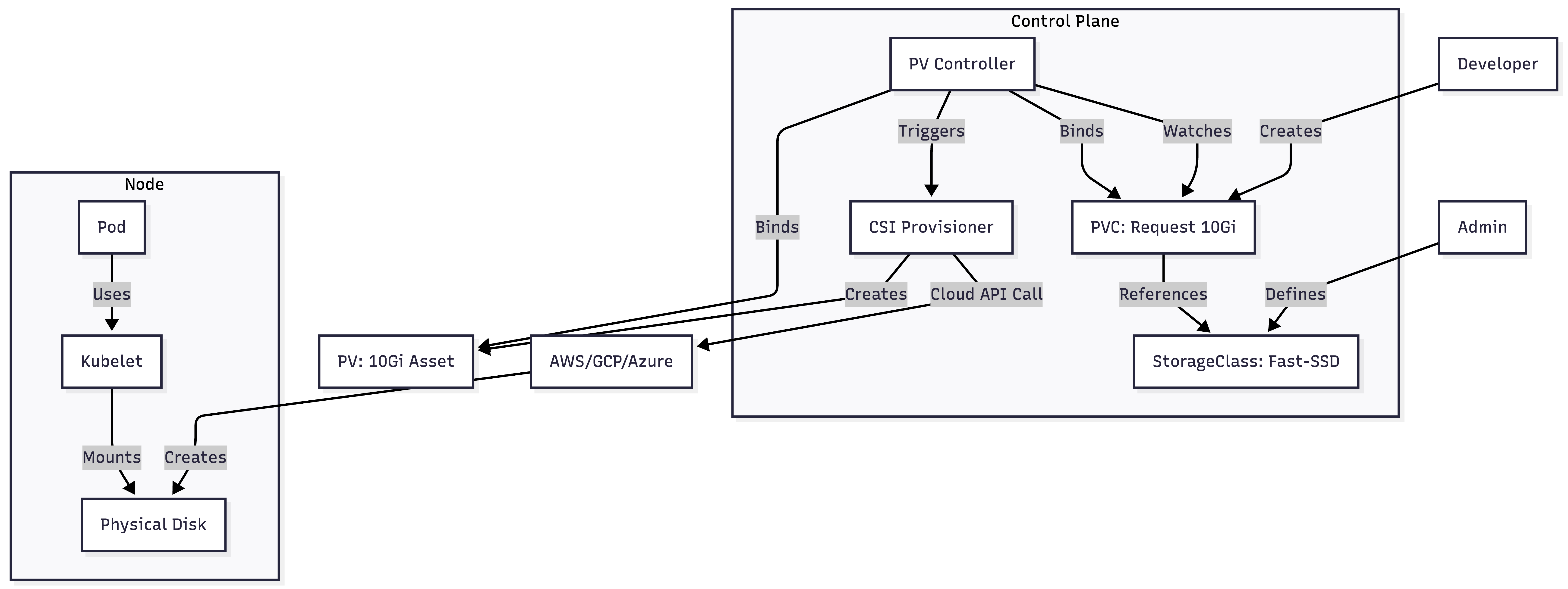

7. VISUALS: THE BINDING WORKFLOW​

8. TROUBLESHOOTING & ARCHITECT COMMANDS​

8.1 "PVC Stuck in Pending"​

If a PVC is pending, investigate the StorageClass and Events.

# Check if the provisioner is failing
kubectl describe pvc <pvc-name>
# Common Error: "failed to provision volume with StorageClass: permission denied"

8.2 Inspecting the Binding​

Check the claimRef to see exactly which PVC owns a PV.

kubectl get pv <pv-name> -o jsonpath='{.spec.claimRef.name}'

8.3 Force Resizing Verification​

After editing the PVC size, check the status:

kubectl get pvc <pvc-name> -o jsonpath='{.status.capacity.storage}'
# If it hasn't changed, check the Pod logs for 'FileSystemResizePending'

8.4 The "Terminating" PVC Hang​

A PVC will stay in Terminating status if a Pod is still using it. This is a safety feature called Storage Object Protection.

# Check for the finalizer
kubectl get pvc <pvc-name> -o yaml
# Look for: finalizers: [kubernetes.io/pvc-protection]
