DNS: The Global Hierarchy and Kubernetes Service Discovery

In a distributed system, IP addresses are ephemeral. The Domain Name System (DNS) provides the translation layer that allows services to find one another. In Kubernetes, this is managed by CoreDNS, a flexible, plugin-based DNS server that integrates directly with the API Server.

---

1. THE GLOBAL DNS HIERARCHY

DNS is a hierarchical, distributed database. Understanding the global flow is essential for configuring external access and cross-cluster communication.

1.1 Anatomy of a Fully Qualified Domain Name (FQDN)

Example: docs.kubernetes.io.

1. The Root (.): The silent dot at the end. It represents the top of the hierarchy managed by the 13 logical root servers.
2. Top-Level Domain (TLD): .io, .com, .net. Managed by Registries.
3. Second-Level Domain (SLD): kubernetes.io. This is what organizations register.
4. Subdomain: docs. A delegation within the organization's zone.

---

2. THE RECURSIVE RESOLUTION PIPELINE

When a client (browser or Pod) requests a domain, the resolution follows a specific sequence of Iterative Queries.

2.1 The Components

• Stub Resolver: A library in the OS (e.g., glibc) that initiates the query.
• Recursive Resolver: Usually your ISP or a public provider (8.8.8.8). It does the "heavy lifting" of traversing the hierarchy.
• Authoritative Nameserver: The final source of truth that holds the actual resource record (e.g., Route53, Cloudflare).

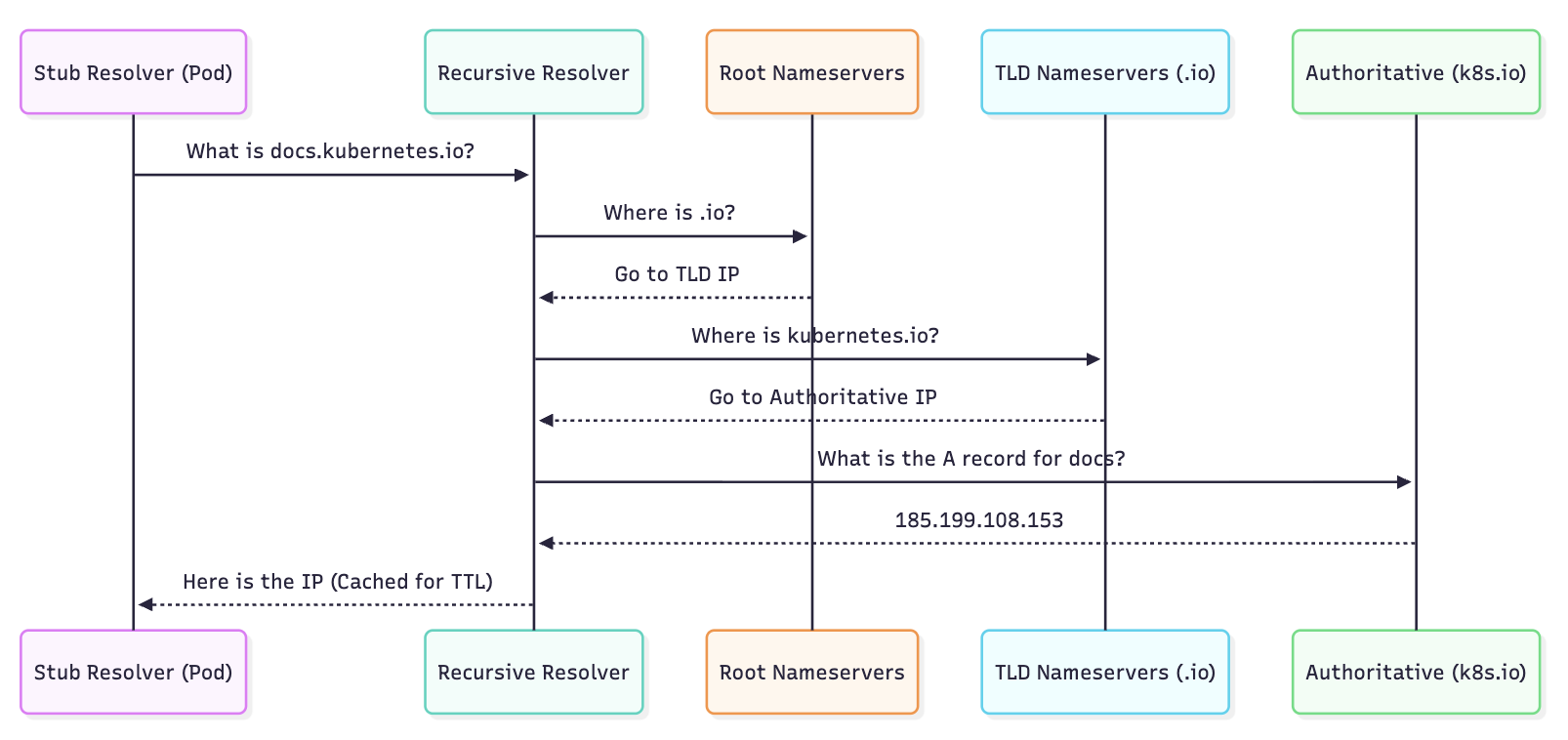

2.2 The Resolution Flow (Visualized)

---

3. KUBERNETES INTERNAL DNS (CoreDNS)

Inside a cluster, DNS is used for Service Discovery. Every Service and Pod gets a DNS record.

3.1 CoreDNS Architecture

CoreDNS is a single binary that uses a Chain of Plugins. When a query arrives, it passes through the chain until a plugin handles it.

• kubernetes plugin: The most important. It watches the API Server for Service and Endpoint changes and generates DNS records in memory.
• cache plugin: Reduces load on the API server.
• forward plugin: Forwards queries for external domains (e.g., google.com) to the node's upstream resolver.

3.2 Standard Internal Records

Target	DNS Record Format	IP Type
Service (ClusterIP)	svc-name.namespace.svc.cluster.local	Service VIP
Headless Service	svc-name.namespace.svc.cluster.local	Multiple Pod IPs
Pod	pod-ip-dashed.namespace.pod.cluster.local	Pod IP

---

4. THE ndots:5 PERFORMANCE PITFALL

One of the most critical architectural details in Kubernetes is the /etc/resolv.conf configuration inside a Pod.

4.1 The Mechanism

By default, Kubernetes sets options ndots:5.

• The Rule: If a domain name has fewer than 5 dots, the resolver will try all Search Domains before trying the name as an absolute FQDN.

4.2 The Resolution Search Order

If a Pod in the default namespace tries to resolve google.com (1 dot):

1. google.com.default.svc.cluster.local (Fail)
2. google.com.svc.cluster.local (Fail)
3. google.com.cluster.local (Fail)
4. google.com. (Success via Upstream)

Impact: Every external request creates 3 unnecessary queries to CoreDNS, increasing latency and CoreDNS CPU usage.

The Bible Fix: Always use a trailing dot for external domains in your code/configs (e.g., google.com.). This tells the resolver the name is already absolute and skips the search list.

---

5. BIBLE-GRADE MANIFESTS

5.1 Customizing CoreDNS (The Corefile)

If you need to resolve on-premise domains via a VPN, modify the CoreDNS ConfigMap.

apiVersion: v1
kind: ConfigMap
metadata:
  name: coredns
  namespace: kube-system
data:
  Corefile: |
    .:53 {
        errors
        health {
           lameduck 5s
        }
        ready
        kubernetes cluster.local in-addr.arpa ip6.arpa {
           pods insecure
           fallthrough in-addr.arpa ip6.arpa
           ttl 30
        }
        prometheus :9153
        forward . /etc/resolv.conf # Upstream fallback
        cache 30
        loop
        reload
        loadbalance
    }
    # CUSTOM FORWARDING for corporate domain
    corp.internal:53 {
        forward . 10.0.0.53
    }

5.2 Pod DNS Policy Override

You can tune a Pod's DNS settings to bypass global cluster defaults.

apiVersion: v1
kind: Pod
metadata:
  name: dns-optimized-app
spec:
  containers:
  - name: app
    image: my-app:latest
  dnsPolicy: "None" # Ignore cluster defaults
  dnsConfig:
    nameservers:
      - 1.1.1.1
    searches:
      - prod.svc.cluster.local
    options:
      - name: ndots
        value: "1" # Optimized for external calls

---

6. DNS RECORDS DEEP DIVE

Record Type	Purpose in K8s	Example
A	Standard service-to-IP mapping.	my-svc.ns.svc.cluster.local -> 10.96.0.10
SRV	Discovering ports for a service.	_http._tcp.my-svc.ns.svc.cluster.local
PTR	Reverse DNS (IP to Name).	10.96.0.10.in-addr.arpa -> my-svc.ns.svc.cluster.local
CNAME	Alias for external services.	Used by type: ExternalName services.

---

7. TROUBLESHOOTING & NINJA TOOLING

7.1 The "Resolver Test"

Verify if the Pod is picking up search domains correctly:

kubectl exec -it <pod-name> -- cat /etc/resolv.conf

7.2 CoreDNS Latency Check

Look for "NXDOMAIN" spikes in CoreDNS metrics (via Prometheus):

sum(rate(coredns_dns_responses_total{code="NXDOMAIN"}[5m]))

7.3 Direct Querying

Test CoreDNS directly from within the cluster:

# Run a temporary debug pod
kubectl run -it --rm --restart=Never dnsutils --image=gcr.io/kubernetes-e2e-test-images/dnsutils:1.3

# Test internal resolution
nslookup kubernetes.default

# Test external resolution with timing
dig google.com

7.4 CoreDNS Logs

If DNS resolution is failing intermittently, enable the log plugin in the Corefile and watch the logs:

kubectl logs -n kube-system -l k8s-app=kube-dns -f

---
