Helm: The Kubernetes Package Manager

Helm is the industry-standard tool for managing Kubernetes application lifecycles. It moves beyond raw YAML hydration (Kustomize) by providing a Stateful Release Engine capable of versioning, rollbacks, and complex logical templating.

---

1. ARCHITECTURE: THE TILLER-LESS MODEL

In Helm v2, a server-side component called "Tiller" was required. Helm v3 removed Tiller, adopting a Client-Only Architecture that relies on the user's kubeconfig and RBAC.

1.1 The Release Backend (Where is the state?)

Helm does not store its state in a database. Instead, it uses Kubernetes Secrets (by default) or ConfigMaps within the namespace of the release.

• Storage Logic: For every helm install or helm upgrade, a new Secret is created: sh.helm.release.v1.[RELEASE_NAME].v[REVISION].
• Rollback Mechanism: When you run helm rollback, Helm simply fetches the manifest from a previous Secret revision and applies it back to the cluster.

1.2 The Rendering Engine

Helm uses the Go text/template library combined with the Sprig function library.

1. Collect: Gathers values from values.yaml, --values, and --set.
2. Render: Injects values into the templates/*.yaml files.
3. Validate: Parses the resulting YAML to ensure it is valid Kubernetes schema.
4. Submit: Calls the Kubernetes API to reconcile the resources.

---

2. THE ANATOMY OF A CHART

A "Bible-grade" Chart is modular and follows the Don't Repeat Yourself (DRY) principle.

my-app/
├── Chart.yaml          # Metadata: Version (Chart), AppVersion (Image)
├── values.yaml         # Default overrides
├── templates/
│   ├── _helpers.tpl    # Named templates (reusable snippets)
│   ├── deployment.yaml
│   ├── service.yaml
│   ├── NOTES.txt       # Post-installation CLI instructions
│   └── tests/          # helm test logic
└── charts/             # Sub-charts (Dependencies)

2.1 Chart.yaml (Versioning Strategy)

• version: The version of the Helm Chart (Increment this for YAML changes).
• appVersion: The version of the application/image (Increment this for code changes).

---

3. ADVANCED TEMPLATING (The Ninja Toolkit)

3.1 Named Templates (_helpers.tpl)

Use define to create reusable blocks and include to inject them.

{{/* _helpers.tpl */}}
{{- define "my-app.labels" -}}
app.kubernetes.io/name: {{ .Chart.Name }}
app.kubernetes.io/instance: {{ .Release.Name }}
managed-by: {{ .Release.Service }}
{{- end }}

Implementation in Deployment:

metadata:
  labels:
    {{- include "my-app.labels" . | nindent 4 }}

3.2 Powerful Functions & Pipelines

• quote: {{ .Values.name | quote }} -> "value"
• default: {{ .Values.port | default 8080 }}
• toYaml: Essential for injecting nested blocks from values.yaml.

  resources:
    {{- toYaml .Values.resources | nindent 6 }}

---

4. LIFECYCLE HOOKS (Production Workflow)

Hooks allow you to execute code at specific points in the release lifecycle (e.g., running a database migration before an upgrade).

Hook	Purpose
pre-install	Run before templates are rendered.
post-install	Run after all resources are created.
pre-upgrade	Crucial: Run database migrations before new Pods start.
pre-rollback	Cleanup before reverting state.

Example Hook (Database Migration):

apiVersion: batch/v1
kind: Job
metadata:
  name: {{ .Release.Name }}-db-migrate
  annotations:
    "helm.sh/hook": pre-upgrade
    "helm.sh/hook-weight": "5"
    "helm.sh/hook-delete-policy": hook-succeeded
spec:
  template:
    spec:
      containers:
      - name: migrate
        image: my-migrator:latest
      restartPolicy: Never

---

5. REPOSITORY & RELEASE MANAGEMENT

5.1 The "Set" vs. "Values" Precedence

Values are merged in this order (highest priority wins):

1. Individual parameters: --set key=value
2. Environment values file: -f values-prod.yaml
3. Default Chart file: values.yaml

5.2 Production Command Cheat Sheet

# 1. Inspect the state of a release
helm get manifest my-release

# 2. Audit the history and find a revision for rollback
helm history my-release

# 3. Dry-run with debug to see the final YAML before applying
helm upgrade --install my-release ./my-chart --dry-run --debug

# 4. Atomic Upgrades: If it fails, auto-rollback
helm upgrade --install my-release ./my-chart --atomic --timeout 5m

---

6. MULTI-ENVIRONMENT ARCHITECTURE (The Bible Pattern)

For production, do not edit values.yaml. Keep it for defaults and use external files for environmental differences.

# Dev Deployment
helm upgrade --install my-api ./chart -f env/dev.yaml --namespace dev

# Prod Deployment (Different Replicas, Ingress Host, and Secrets)
helm upgrade --install my-api ./chart -f env/prod.yaml --namespace prod --wait --atomic

env/prod.yaml Example:

replicaCount: 10
ingress:
  host: api.production.com
resources:
  limits:
    memory: 4Gi

---

7. PRODUCTION PITFALLS & REAL-WORLD WARNINGS

1. The "Release Name" Constraint: Release names must be unique per namespace.
2. Secret Limits: By default, Helm keeps 10 revisions in history. In clusters with thousands of releases, this can bloat the etcd database.
   • Fix: Set --history-max 5 during installation.
3. Missing tpl Function: If you want to use Helm variables inside a string stored in values.yaml, you must use the tpl function.
   • Example: {{ tpl .Values.myConfigString . }}
4. Chart Version vs App Version: Never confuse these. If you change a resource limit in YAML, increment the Chart version. If you change the code, increment the AppVersion.

---

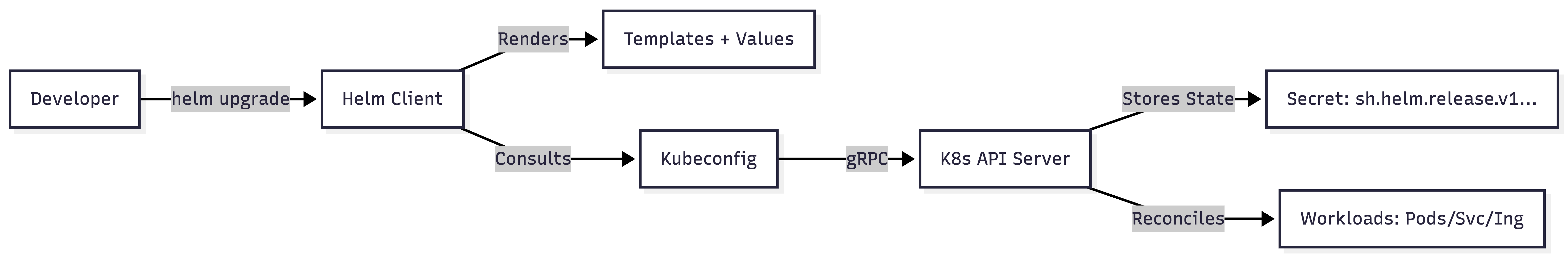

8. VISUAL: HELM V3 DATA FLOW

---

9. NINJA AUDITING COMMANDS

View raw state of a release in Etcd

# Decode the base64/gzip release data stored in the K8s Secret
kubectl get secret -n my-ns sh.helm.release.v1.my-app.v1 -o jsonpath='{.data.release}' | base64 -d | base64 -d | gzip -d | jq

Dependency Management

If your chart relies on others (e.g., a Redis sub-chart):

# 1. Update your local dependencies
helm dependency update ./my-chart

# 2. Check the build lock
cat ./my-chart/Chart.lock

---
