External Access: The CSR Lifecycle & X.509 Identity

Kubernetes does not have a "User" object in its database. Instead, it trusts any request signed by the Cluster Root CA. To grant a human or an external process access, we use the CertificateSigningRequest (CSR) API to bootstrap a trusted X.509 identity.

1. ARCHITECTURAL MAPPING: X.509 TO RBAC​

When the API Server receives a certificate, it extracts the identity from the Subject fields. This is the "Glue" between cryptography and authorization:

  • Common Name (CN): Mapped to the User Name.
  • Organization (O): Mapped to Groups.

Example Subject: /CN=seema/O=app1-devs/O=platform-team

  • Kubernetes identifies this caller as user seema.
  • Kubernetes treats this user as a member of two groups: app1-devs and platform-team.

2. PHASE 1: CLIENT-SIDE IDENTITY GENERATION​

The client initiates the process by creating a private key and a signing request. The private key never leaves the client's machine.

2.1 Generate Private Key and CSR​

# 1. Create a 2048-bit RSA Private Key
openssl genrsa -out seema.key 2048

# 2. Create the CSR. Note the CN (Username) and O (Groups)
openssl req -new -key seema.key \
  -out seema.csr \
  -subj "/CN=seema/O=developers"

2.2 Verify the CSR Content​

Before sending it to the admin, verify the attributes are correct:

openssl req -in seema.csr -noout -text | grep Subject

3. PHASE 2: THE KUBERNETES CSR API​

The Administrator doesn't sign the certificate manually on the master node. Instead, they use the Kubernetes API to manage the lifecycle.

3.1 Create the CSR Object​

The .csr file must be Base64 encoded and embedded into a Kubernetes object.

apiVersion: certificates.k8s.io/v1
kind: CertificateSigningRequest
metadata:
  name: user-seema-access
spec:
  request: <BASE64_ENCODED_CSR_HERE>
  # Standard signer for client certificates
  signerName: kubernetes.io/kube-apiserver-client
  expirationSeconds: 86400 # 24 hours (Production Best Practice: Short TTL)
  usages:
  - client auth

3.2 The Approval Workflow​

  1. Submit: kubectl apply -f csr.yaml
  2. Audit: The admin inspects the request.
    kubectl get csr user-seema-access
  3. Approve: The Controller Manager signs the certificate using the Cluster CA.
    kubectl certificate approve user-seema-access

3.3 Extract the Issued Certificate​

Once approved, the signed certificate is stored in the status field of the CSR object.

kubectl get csr user-seema-access -o jsonpath='{.status.certificate}' | base64 -d > seema.crt

4. PHASE 3: KUBECONFIG PROVISIONING​

The user now assembles their credentials into a portable kubeconfig.

# 1. Add User Credentials (Embedding ensures portability)
kubectl config set-credentials seema \
  --client-certificate=seema.crt \
  --client-key=seema.key \
  --embed-certs=true

# 2. Define Context
kubectl config set-context seema-access \
  --cluster=prod-cluster \
  --user=seema \
  --namespace=default

# 3. Test Connectivity (Will fail initially due to 403 Forbidden/RBAC)
kubectl get pods --context=seema-access

5. PHASE 4: AUTHORIZATION (RBAC)​

A certificate only proves identity (Authentication). It does not grant permissions (Authorization). An admin must create a RoleBinding mapping the CN of the certificate to a Role.

apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: seema-dev-access
  namespace: default
subjects:
- kind: User
  name: seema # Matches the CN in the certificate
  apiGroup: rbac.authorization.k8s.io
roleRef:
  kind: ClusterRole
  name: edit # Standard built-in role
  apiGroup: rbac.authorization.k8s.io

6. PRODUCTION WARNING: THE REVOCATION PROBLEM​

This is a critical architectural consideration for Principal Engineers:

Kubernetes X.509 certificates cannot be revoked.

  • There is no native support for CRL (Certificate Revocation Lists) or OCSP (Online Certificate Status Protocol) in the kube-apiserver.
  • If a user's private key is compromised, or a user leaves the organization, their certificate remains valid until it expires.

Mitigation Strategies:​

  1. Short TTLs: Issue certificates with very short expirationSeconds (e.g., 8-12 hours).
  2. OIDC / Tokens: For human users, prefer OIDC (Okta, Google, AD) which allows for instantaneous session revocation.
  3. Use CSRs for Machines: Only use the CSR API for internal cluster components or trusted system-level automated processes.

7. TROUBLESHOOTING & NINJA AUDITING​

7.1 "User is Authenticated but Unauthorized"​

If the user gets a 403 Forbidden, they are authenticated (the cert is valid). Use the auth can-i tool to debug the RBAC mapping:

kubectl auth can-i list pods --as=seema

7.2 Inspecting Certificate Metadata​

Verify the CN and O fields of an issued certificate:

openssl x509 -in seema.crt -text -noout | grep "Subject:"

7.3 Manual Approval Check​

In high-security environments, you can audit who approved a specific CSR:

kubectl get csr user-seema-access -o jsonpath='{.status.conditions[0].reason}'

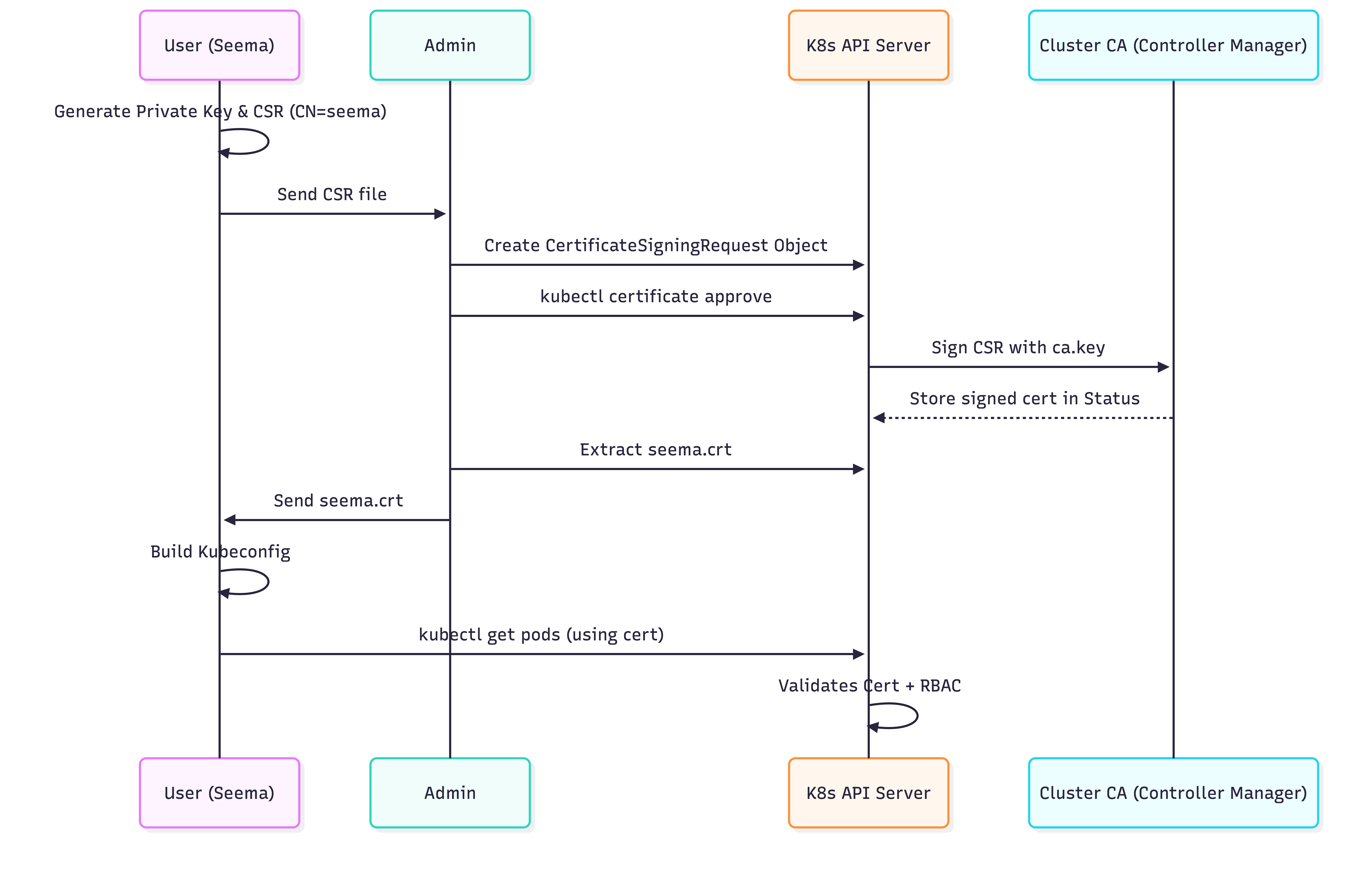

8. VISUAL: THE CSR FLOW​
